Improving the SL Camera (Short Version)

I've updated this post! Check out the polished up version of this article!

 Last year I wrote a lengthy article explaining why camera placement matters in virtual environments, how the SL camera works and, finally, how to improve the SL camera yourself by adjusting some debug settings. By popular demand, here is an excerpt with just the part about how to improve your SL camera!




The Improved SL Camera

 If you like these camera settings, contact LL or the creators of your favourite SL viewer and ask them to include them as selectable presets! That way you don't have to manually enter them in with every viewer update and you can more easily share them to your friends!


 I am including in these directions the changes one needs to make to get either a centred view or a left shoulder offset. Most people prefer the right shoulder offset however some people who do not play many videogames have found the offset view difficult to adjust to and I've had at least one person ask me how to get a left shoulder view.

First you need to reveal the Advanced menu at the top of your screen. To do this simply press ctrl+alt+d and the menu will appear to the right of the Help menu in your menu bar. Viewer 3 users can also go to the Advanced tab in Preferences and select to have the Advanced menu shown.

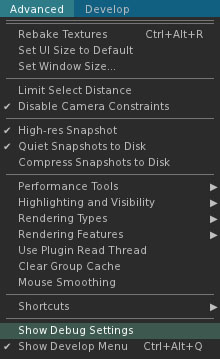

 From the Advanced menu select "Show Debug Settings", near the bottom.




 The Debug Settings panel will appear. At the top of the Debug Settings panel is a field where you can type the name of the setting you'd like to adjust.

 Viewer 3 users will want to type "CameraOffsetRearView".

 People using a 1.x viewer will instead type "CameraOffsetDefault".




The panel provides you with three integers to change for the x, y and z placement of your CameraOffset.  Change them to these settings;

x: -2.000
y: -0.400   ( Make positive for a left shoulder offset, leave as 0.000 for a centred view. )
z: -0.200

 Once that is done click on the input field again and move to the next setting;

Viewer 3 users will type "FocusOffsetRearView".

People using 1.x viewers will type "FocusOffsetDefault".




Once more you will have x, y and z  positions, this time for the focus point.
 Change them to these settings;

x: 0.900
y: -0.700   ( Make positive for a left shoulder offset, leave as 0.000 for a centred view. )
z: 0.200
Viewer 3 users will see their camera change as they enter each number, 1.x users may need to restart SL to see the changes to their camera take effect.

Here's some solutions to issues some people run into.

Avatar fills entire screen. Simply zoom the camera out! The mousewheel zoom controls work exactly like before. You can also adjust the "x" CameraOffset to move the default camera position forward or back.

The view is odd, I can't see where I'm going/camera points up!
 Make sure you change both the CameraOffset and the FocusOffset. If you only change one and not the other it wont' do you much good at all!

 If you did everything correctly your view in SL should resemble this;


And this;


Click and hold on your avatar to angle your view up or down, even as you move!
 Enjoy!


 05-07-2012 Update! FOV improvement!
 Something I've noticed is that you can improve your SL view further by altering the FOV.


First, press ctrl+9 to make sure your FOV is at the default. Then, hold the ctrl key down and press 0 about 6 times. The resulting effect is that SL seems to have a greater sense of depth.

 It's difficult to capture this effect in screenshots as it has more to do with the way things look as your camera moves about, but I've found this to be a huge improvement in making SL look more cinematic.
